Vape A/C D/C Voltage Regulator

AC/DC regulator for VAPE ignitions R54

Other regulators can only offer either DC or AC, this voltage regulator R54 by Vape delivers both. The perfect treat for all tinkerers who work with a VAPE ignition. With the Voltage Regulator R54, you can freely design your wiring harness and its on-board electrics according to your own choices. The combination of an AC and a DC output allows a variety of circuits and options for an individual voltage supply of the consumers. For example, you can continue to operate the headlights with alternating current and additionally supply a USB socket with direct current. Even a reversing camera can finally be realised with this.

If you want to customise your power management, the R54 is the right choice. However, the connection requires prior knowledge and initiative.

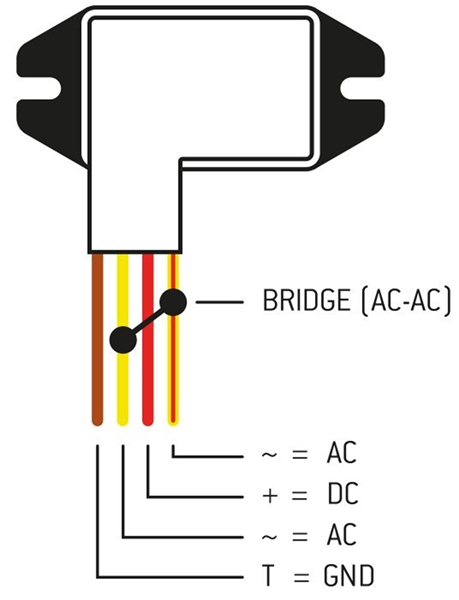

The assignment of the four cables:

Brown = Ground

Yellow/Red = AC input from the ignition base plate

Red = DC output battery charge

Yellow = AC output

Important: The two AC contacts, the input and the output of the voltage regulator, must be bridged so that the voltage remains the same when the load fluctuates!
